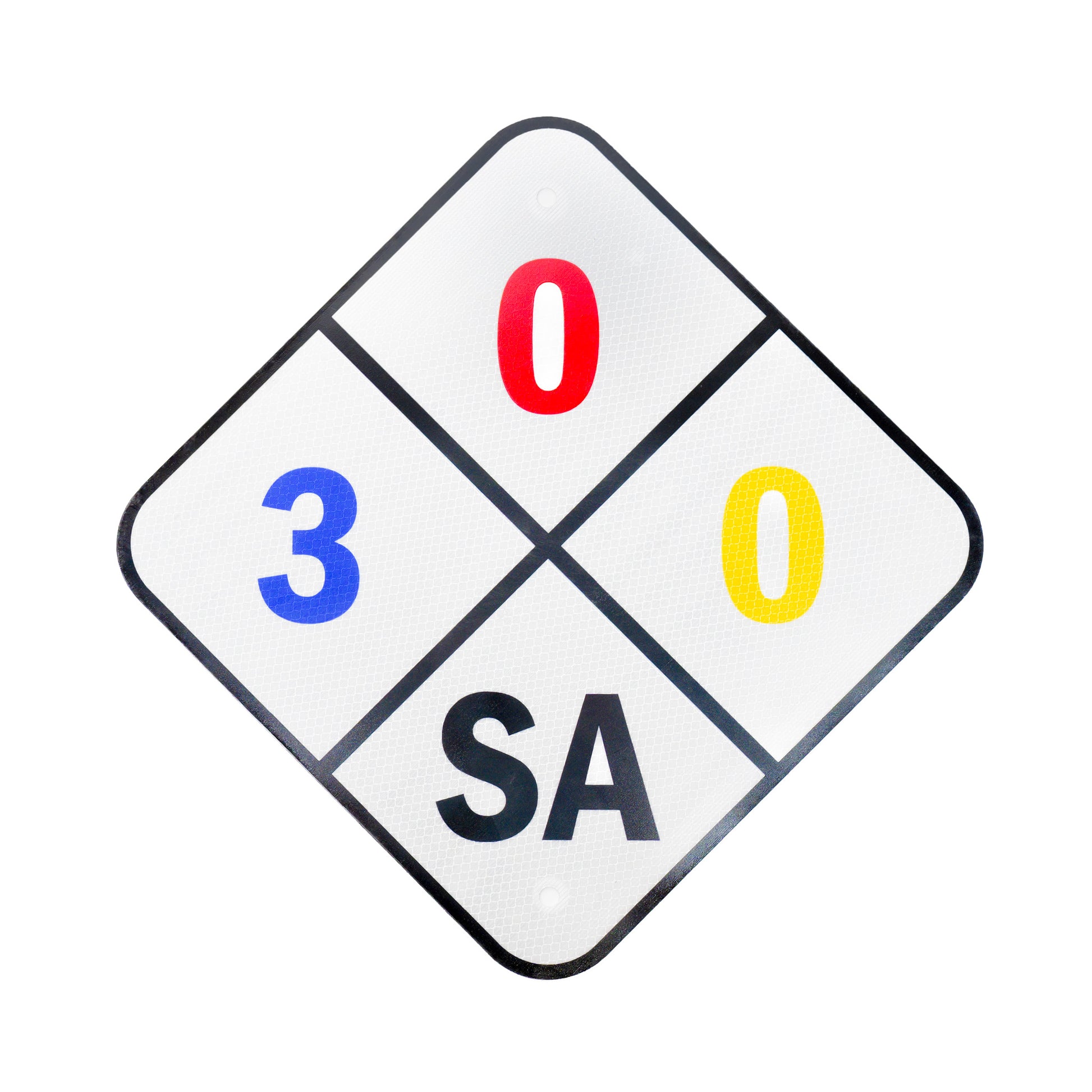

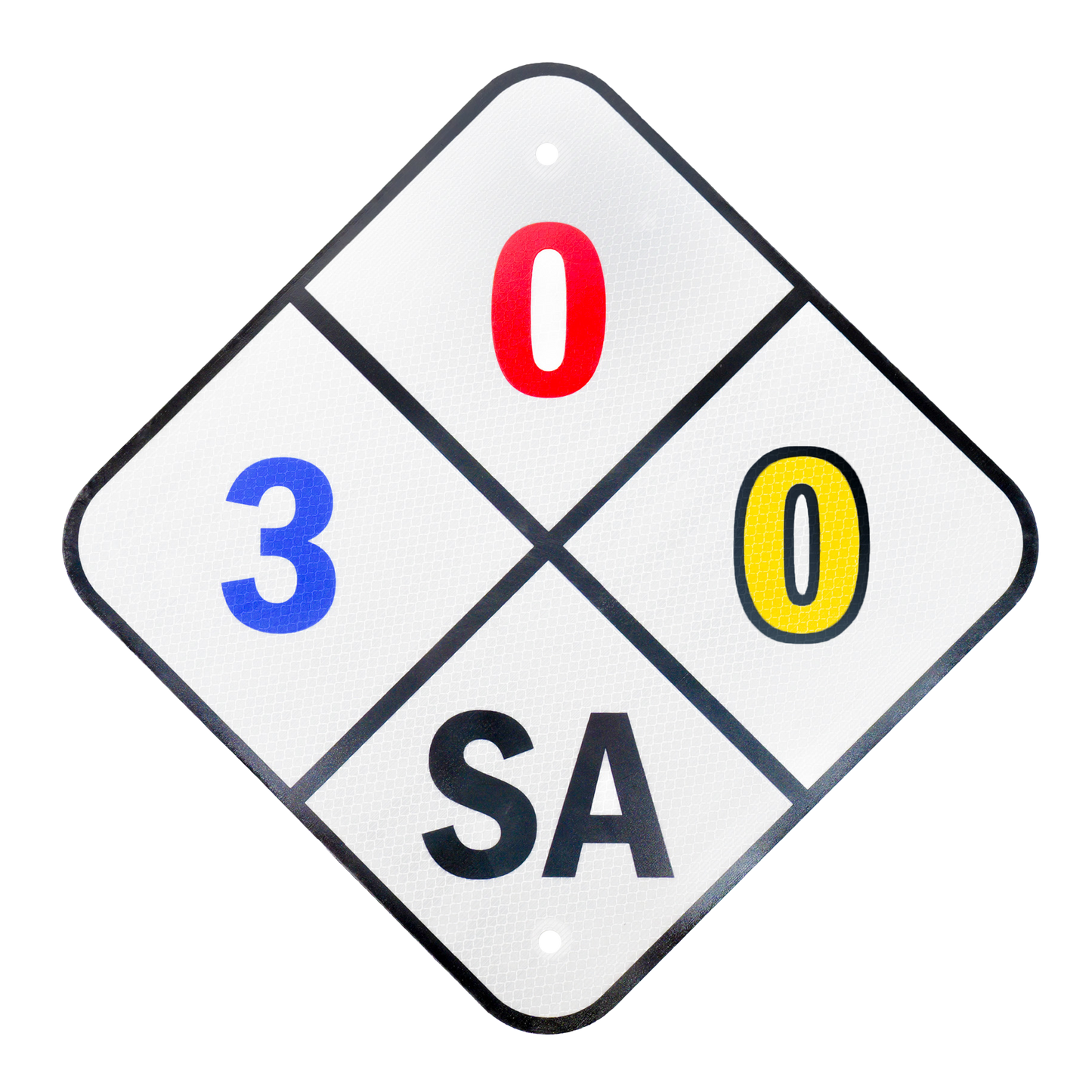

This 12" x 12" reflective HAZMAT sign is designed to meet NFPA 704 and Allen, Texas local fire code for CO2 storage and gas handling facilities. It features the standard diamond configuration with hazard ratings of 3 (Health - Blue), 0 (Flammability - Red), and 0 (Reactivity - Yellow), plus the special hazard designation SA (Simple Asphyxiant) in black letters on a white field. This layout delivers clear, compliant safety messaging at a glance.
Engineered for longevity and visibility, this sign is constructed from durable .080" aluminum and finished with white 3M Scotchlite Diamond Grade reflective sheeting for enhanced reflectivity. It’s ideal for both indoor and outdoor use in tank enclosures, cylinder storage zones, and CO2 system areas.
Key Features
- 12" x 12" NFPA 704 placard with weatherproof reflective face
- Fabricated from .080" aluminum with minimum .75" radius corners
- Face constructed using white 3M Scotchlite Diamond Grade Reflective Sheeting (3990 Series VIP Type IX)
- Lettering and hazard graphics produced using:
- 3M Scotchlite Transparent Cuttable Film (1170 Series) with reverse cut for white background visibility, or
- Screen printed using 3M 8801 Series red translucent ink
- Handel Gothic BT capital font with kerning for clear legibility
- SA designation printed in black; hazard ratings printed in:
- Blue (Health), Red (Flammability), Yellow with black outline (Reactivity)
- Rounded corner design and pre-drilled holes for easy mounting
- Rated for fade resistance, flame retardance, and high visibility
- Code-compliant for beverage gas facilities, labs, and industrial CO2 applications
- Required by the Fire Marshal for CO2 signage in Allen, Texas and other regulated zones
Installation Note: All signage and updates must be pre-approved by the local Fire Marshal’s office. When used indoors, reflective material may not be required unless specified.
Sign dimensions: 12" wide by 12" tall.
