CO2 Sensor Location Board – Aerosphere® RVL01-17 Zone Mapping Sign

Keep your CO2 detection system organized, compliant, and inspection-ready with this CO2 Sensor Location Board, designed specifically for use with the Aerosphere® RVL01-17 CO2 Monitoring System.

These rigid yellow PVC boards allow you to clearly label the location of each sensor in your setup, making maintenance, inspections, and troubleshooting faster and more transparent for fire officials, technicians, and onsite personnel.

Key Features

• Made for Aerosphere® RVL01-17 CO2 monitoring systems and Aerosphere® Secondary Units
• Rigid PVC board with pre-printed fields for labeling sensor locations
• Two layout options to match your system configuration
• Bright yellow with clear black print for easy readability
• Helps meet fire code documentation requirements during inspections
• Ideal for commercial kitchens, cold storage, breweries, and grow ops

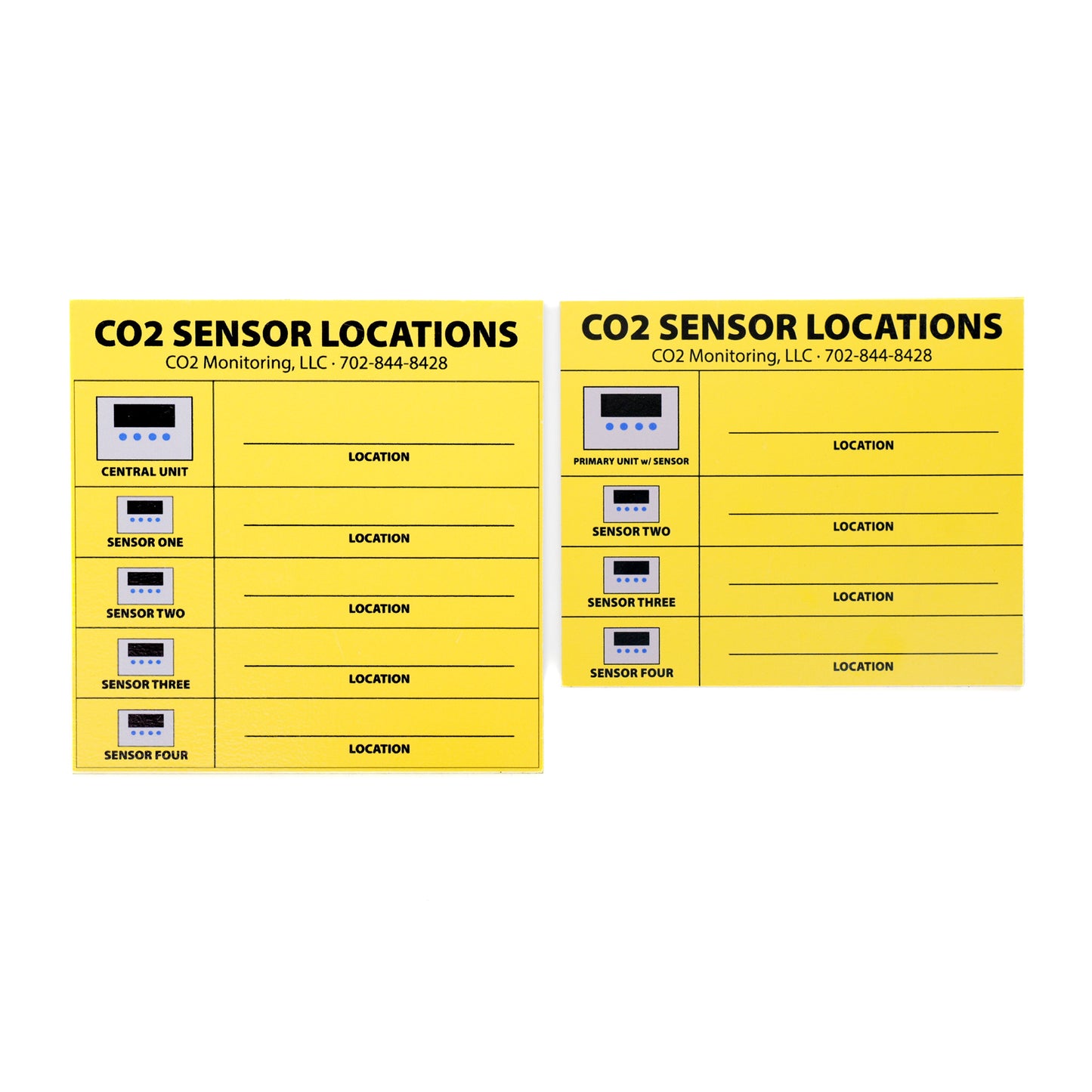

Choose between two layout variants, each with visual sensor icons and fillable location fields.

Available Variants

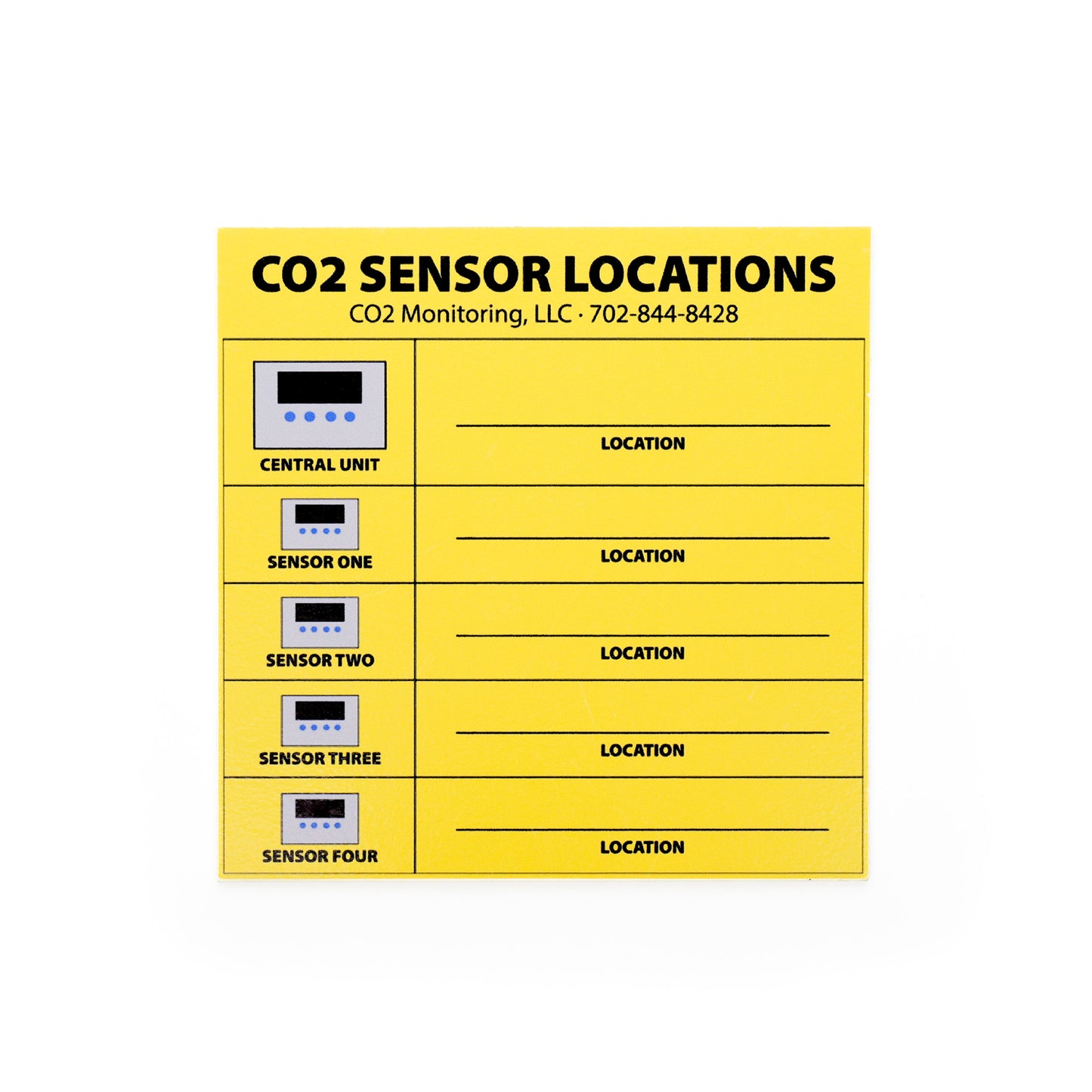

• Central Unit + 4-Zone Configuration: Features a central control unit and four secondary sensor slots. Ideal for systems where the RVL01-17 acts as a central supervisory unit across the four monitoring zones. Dimensions: 6.125" wide by 6.125" tall.

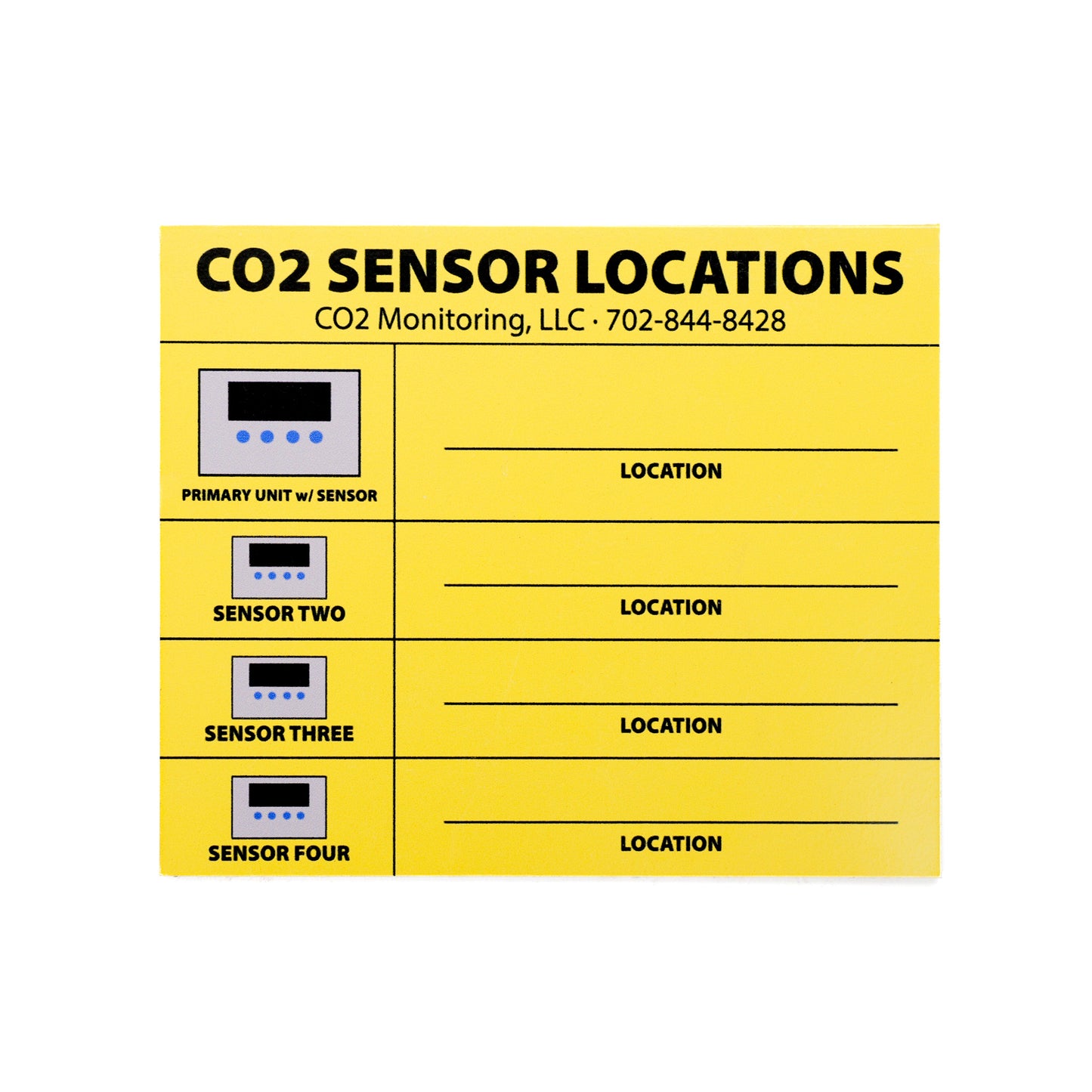

• Primary Sensor + 3-Zone Configuration: Designed for setups where the RVL01-17 serves as the first sensor zone, followed by three additional secondary sensors. Dimensions: 6" wide by 5" tall.
